SS109HT High Performance Pan & Tilt Device
The SIDUS underwater SS109HT high-performance pan & tilt robotic positioning device improves the versatility and reliability of subsea video inspection systems.
The dependability and ease of maintenance of this robust pan & tilt assembly are achieved through the integration of high output stepper motors, low backlash harmonic drives and precision ball bearings into a unique modular motor assembly. These unitized motor modules develop a hefty 14-foot pounds of torque with only 3 arc minutes of backlash and speeds up to 17 degrees per second.
SS109HT Specs
SS109HT High Performance Pan & Tilt
SIDUS Solutions’ underwater SS109HT high-performance pan & tilt robotic positioning device improves the versatility and reliability of subsea video inspection systems.
The dependability and ease of maintenance of this robust pan & tilt assembly are achieved through the integration of high output stepper motors, low backlash harmonic drives and precision ball bearings into a unique modular motor assembly. These unitized motor modules develop a hefty 14-foot pounds of torque with only 3 arc minutes of backlash and speeds up to 17 degrees per second.
Field repair is simplified to using only small hand tools, because of the distinctive modular design, found only in the SS109HT assembly. Soldering not required.
Additionally, this HT version offers a broader set of ASCII commands to positioning details, diagnostics and control. As well as the SS109HT is modifiable to include feedback circuits and limit switches for applications where position information is vital. It can also be customer serviced if needed.
SS109HT High Performance Pan & Tilt
Key features, but not limited to:
- Torque: 14ft pounds / 19 Nm (each axis)
- Rotation Speed: Up to 20° per second
- Scan Range: 360° both axis / 180° tilt axis with yoke
- Depth rated 6000 meters
- Positional Accuracy: 0.1°
- Reversible synchronous motors
- Low backlash harmonic drives

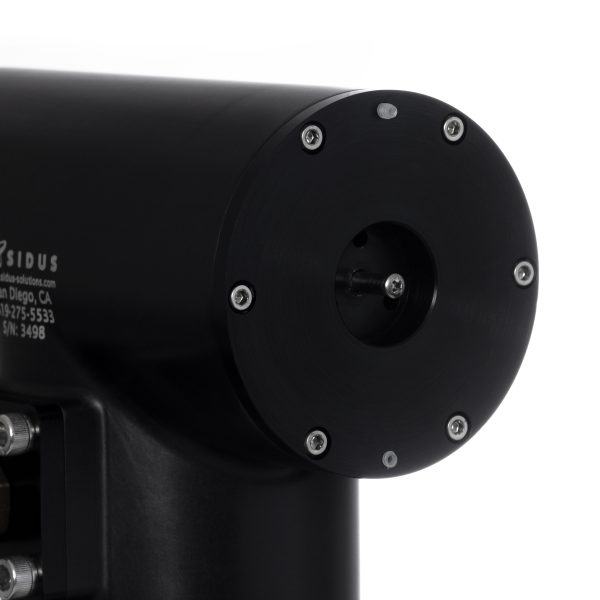

The SS109HT high performance pan & tilt is a robotic positioning device manufactured in the United States by SIDUS Solutions. It boasts a hand annotated 6061-t6 aluminum housing, 316 stainless steel fasteners, and Buna O-ring. As a result, the operating temperature is -4° to 122° F (-20° to 60° C) with depth ratings of 10,000 feet / 3050 meters (internal compensation) and 18,000 feet / 6000 meters (external compensation).
For more information on the SS109HT High Performance Pan & Tilt assembly specifications, download the datasheet here: SS109HT Datasheet
